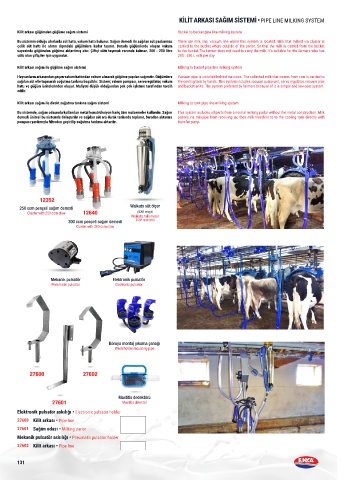

KİLİT ARKASI SAĞIM SİSTEMİ • PIPE LINE MILKING SYSTEM
       Kilit arkası güğümden güğüme sağım sistemi                Bucket to bucket pipe line milking system

       Bu sistemin olduğu ahırlarda süt hattı, vakum hattı bulunur. Sağım demedi ile sağılan süt paslanmaz   There are milk line, vacuum line where this system is located. Milk that milked via cluster is
       çelik  süt  hattı  ile  ahırın  dışındaki  güğümlere  kadar  taşınır.  Burada  güğümlerde  oluşan  vakum   carried to the bucket where outside of the parlor. So that the milk is carried from the bucket
       sayesinde güğümden güğüme aktarılmış olur. Çiftçi sütü taşımak zorunda kalmaz. 200 - 250 litre   to the bucket.The farmer does not need to carry the milk. It’s suitable for the farmers who has
       sütü olan çiftçiler için uygundur.                        200 - 250 L milk per day.
       Kilit arkası sağım ile güğüme sağım sistemi               Milking to bucket pipe line milking system
       Hayvanların arkasından geçen vakum hattından vakum alınarak güğüme yapılan sağımdır. Güğümlere   Vacuum pipe is installed behind the cows. The collected milk that comes from cow is carried to
       sağılan süt elle taşınarak soğutma tankına boşaltılır. Sistem; vakum pompası, servoregülator, vakum   the cooling tank by hands. This system includes vacuum pump unit, servo regulator, vacuum pipe
       hattı ve güğüm ünitelerinden oluşur. Maliyeti düşük olduğundan pek çok işletme tarafından tercih   and bucket units. The system preferred by farmers because of it is simple and low-cost system.
       edilir.
       Kilit arkası sağım ile direkt soğutma tankına sağım sistemi  Milking to tank pipe line milking system
       Bu sistemde, sağım odasında kullanılan metal konstrüksiyon hariç tüm malzemeler kullanılır. Sağım   This system includes all parts from a normal milking parlor without the metal construction. Milk
       demedi ünitesi bu sistemde dolaştırılır ve sağılan süt ara durak tankında toplanır, buradan aktarma   passes via milkpipe from receiving jar, then milk transfers to to the cooling tank directly with
       pompası yardımıyla filtreden geçirilip soğutma tankına aktarılır.  transfer pump.















               12352
                                                Waikato süt ölçer
        250 ccm pençeli sağım demedi
           Cluster with 250 ccm claw  12640       (ICAR onaylı)
                                                Waikato milk meter
                          300 ccm pençeli sağım demedi  (ICAR approved)
                            Cluster with 300 ccm claw









                   Mekanik pulsatör      Elektronik pulsatör
                   Pneumatic pulsator     Electronic pulsator











                                        Boruya montaj yıkama çanağı
                                          Wash holder mounting pipe




            27600              27602



                                           Mastitis dedektörü
                    27601                    Mastitis detector

       Elektronik pulsatör askılığı • Electronic pulsator holder
       27600 Kilit arkası • Pipe line
       27601 Sağım odası • Milking parlor
       Mekanik pulsatör askılığı • Pneumatic pulsator holder
       27602 Kilit arkası • Pipe line
