Page 150 - Enka Tarım Product Catalog 2024 Edition
P. 150

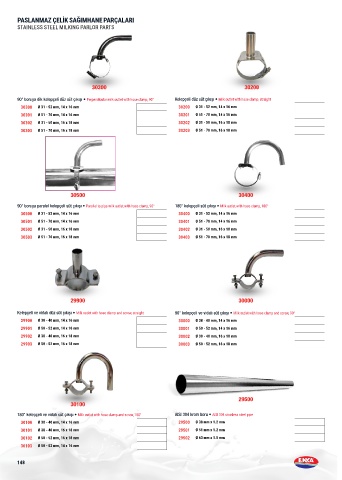

PASLANMAZ ÇELİK SAĞIMHANE PARÇALARI
STAINLESS STEEL MILKING PARLOR PARTS
30300 30200
90° boruya dik kelepçeli düz süt çıkışı • Perpendicular milk outlet with hose clamp, 90° Kelepçeli düz süt çıkışı • Milk outlet with hose clamp, straight
30300 Ø 31 - 52 mm, 14 x 16 mm 30200 Ø 31 - 52 mm, 14 x 16 mm
30301 Ø 51 - 70 mm, 14 x 16 mm 30201 Ø 51 - 70 mm, 14 x 16 mm
30302 Ø 31 - 50 mm, 16 x 18 mm 30202 Ø 31 - 50 mm, 16 x 18 mm
30303 Ø 51 - 70 mm, 16 x 18 mm 30203 Ø 51 - 70 mm, 16 x 18 mm
30500 30400
90° boruya paralel kelepçeli süt çıkışı • Parallel to pipe milk outlet with hose clamp, 90° 180° kelepçeli süt çıkışı • Milk outlet with hose clamp, 180°
30500 Ø 31 - 52 mm, 14 x 16 mm 30400 Ø 31 - 52 mm, 14 x 16 mm
30501 Ø 51 - 70 mm, 14 x 16 mm 30401 Ø 51 - 70 mm, 14 x 16 mm
30502 Ø 31 - 50 mm, 16 x 18 mm 30402 Ø 31 - 50 mm, 16 x 18 mm
30503 Ø 51 - 70 mm, 16 x 18 mm 30403 Ø 51 - 70 mm, 16 x 18 mm
29900 30000
Kelepçeli ve vidalı düz süt çıkışı • Milk outlet with hose clamp and screw, straight 90° kelepçeli ve vidalı süt çıkışı • Milk outlet with hose clamp and screw, 90°
29900 Ø 38 - 40 mm, 14 x 16 mm 30000 Ø 38 - 40 mm, 14 x 16 mm
29901 Ø 50 - 52 mm, 14 x 16 mm 30001 Ø 50 - 52 mm, 14 x 16 mm
29902 Ø 38 - 40 mm, 16 x 18 mm 30002 Ø 38 - 40 mm, 16 x 18 mm
29903 Ø 50 - 52 mm, 16 x 18 mm 30003 Ø 50 - 52 mm, 16 x 18 mm
29500
30100
180° kelepçeli ve vidalı süt çıkışı • Milk outlet with hose clamp and screw, 180° AISI 304 krom boru • AISI 304 stainless steel pipe
30100 Ø 38 - 40 mm, 14 x 16 mm 29500 Ø 38 mm x 1.2 mm
30101 Ø 38 - 40 mm, 16 x 18 mm 29501 Ø 51 mm x 1.2 mm
30102 Ø 50 - 52 mm, 16 x 18 mm 29502 Ø 63 mm x 1.5 mm
30103 Ø 50 - 52 mm, 14 x 16 mm
148
