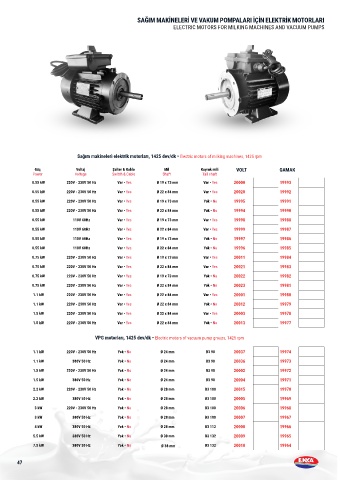

Page 49 - Enka Tarım Product Catalog 2024 Edition

SAĞIM MAKİNELERİ VE VAKUM POMPALARI İÇİN ELEKTRİK MOTORLARI
ELECTRIC MOTORS FOR MILKING MACHINES AND VACUUM PUMPS

Sağım makineleri elektrik motorları, 1425 dev/dk • Electric motors of milking machines, 1425 rpm

Güç Voltaj Şalter & Kablo Mil Kuyruk mili VOLT GAMAK
Power Voltage Switch & Cable Shaft Tail shaft
0.55 kW 220V - 230V 50 Hz Var • Yes Ø 19 x 73 mm Var • Yes 20000 19993
0.55 kW 220V - 230V 50 Hz Var • Yes Ø 22 x 84 mm Var • Yes 20020 19992
0.55 kW 220V - 230V 50 Hz Var • Yes Ø 19 x 73 mm Yok • No 19995 19991
0.55 kW 220V - 230V 50 Hz Var • Yes Ø 22 x 84 mm Yok • No 19994 19990
0.55 kW 110V 60Hz Var • Yes Ø 19 x 73 mm Var • Yes 19998 19988

0.55 kW 110V 60Hz Var • Yes Ø 22 x 84 mm Var • Yes 19999 19987
0.55 kW 110V 60Hz Var • Yes Ø 19 x 73 mm Yok • No 19997 19986
0.55 kW 110V 60Hz Var • Yes Ø 22 x 84 mm Yok • No 19996 19985
0.75 kW 220V - 230V 50 Hz Var • Yes Ø 19 x 73 mm Var • Yes 20011 19984
0.75 kW 220V - 230V 50 Hz Var • Yes Ø 22 x 84 mm Var • Yes 20021 19983
0.75 kW 220V - 230V 50 Hz Var • Yes Ø 19 x 73 mm Yok • No 20022 19982
0.75 kW 220V - 230V 50 Hz Var • Yes Ø 22 x 84 mm Yok • No 20023 19981
1.1 kW 220V - 230V 50 Hz Var • Yes Ø 22 x 84 mm Var • Yes 20001 19980
1.1 kW 220V - 230V 50 Hz Var • Yes Ø 22 x 84 mm Yok • No 20012 19979

1.5 kW 220V - 230V 50 Hz Var • Yes Ø 22 x 84 mm Var • Yes 20003 19978
1.5 kW 220V - 230V 50 Hz Var • Yes Ø 22 x 84 mm Yok • No 20013 19977

VPG motorları, 1425 dev/dk • Electric motors of vacuum pump groups, 1425 rpm

1.1 kW 220V - 230V 50 Hz Yok • No Ø 24 mm B3 90 20037 19974
1.1 kW 380V 50 Hz Yok • No Ø 24 mm B3 90 20036 19973
1.5 kW 220V - 230V 50 Hz Yok • No Ø 24 mm B3 90 20002 19972
1.5 kW 380V 50 Hz Yok • No Ø 24 mm B3 90 20004 19971
2.2 kW 220V - 230V 50 Hz Yok • No Ø 28 mm B3 100 20015 19970
2.2 kW 380V 50 Hz Yok • No Ø 28 mm B3 100 20005 19969

3 kW 220V - 230V 50 Hz Yok • No Ø 28 mm B3 100 20006 19968
3 kW 380V 50 Hz Yok • No Ø 28 mm B3 100 20007 19967
4 kW 380V 50 Hz Yok • No Ø 28 mm B3 112 20008 19966
5.5 kW 380V 50 Hz Yok • No Ø 38 mm B3 132 20009 19965
7.5 kW 380V 50 Hz Yok • No Ø 38 mm B3 132 20010 19964
